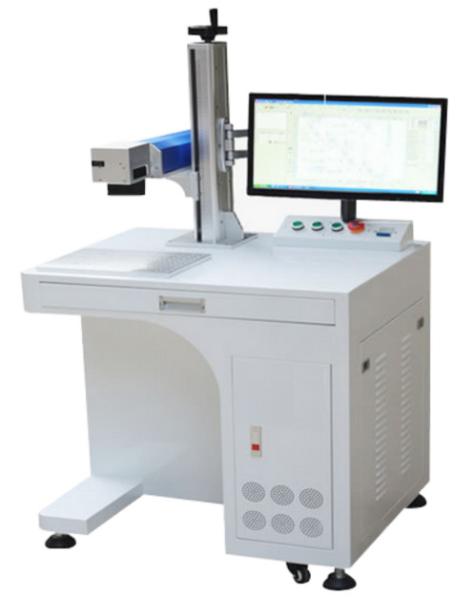

Fiber laser marker machine Engraving Machine with Stable Laser
System JHX-200200G
Material & Application
Applicable Materials of logo printing fiber
Applies to metal materials, stainless steel, copper, brass,
plastic, electroplating materials, coating materials, spraying
materials, rubber, resin, ceramic and so on.
ApplicableProducts of logo printing fiber
The device is widely used in electronic components, communications
equipment, automobile and motorcycle parts, instrumentation,
military products, mechanical hardware, measuring and tools, etc
DESCRIPTION
CNC desktop fiber color laser marking writing machine for
eyeglasses
Fiber laser marking machine adopts most advanced fiber laser source
and high-quality galvo scanning system. It can provide stable power
output, perfect optical mode, good beam quality and high marking
speed.
Perfectly mark on metal, high hard alloy, oxide, electroplating,
coating, ABS, epoxy, ink, plastics
Features
Fiber laser marking machine is the new generation laser marking
system. With advanced laser techniques our company adopts fiber
laser to output laser and achieves to marking function after high
speed scanning oscillating mirror system. It has higher
photoelectrical transfer efficiency. This model adopts air cooling
way and the machine whole structure is small, the output beam is in
good quality and high It is widely reliability.
1. Best Marking Effect:
the laser beam of fiber laser is fine and thin. It can provide the
best marking effect among all the laser machine machines.
Especially good in smallest character marking, such as mark on IC
chip.
2. Easily Operating:
Afford the specific coding software based on Windows, You can input
and output by computer according to edit in the both of the
specific 5.
coding software and the graphic software such as AutoCAD, CorelDRAW
and Photoshop.
3. Deep Marking:
Perfect Laser’s Fiber Laser Marking Machine can make deep marking
up to 1.0mm on stainless steel and aluminum.
While YAG and Diode marking only could mark 0.2mm-0.3mm.
4. Compact:
The high-tech product, which is combined of laser device, computer,
auto controller and precision machinery.
5. High Precision:
Re-position precision is 0.002mm.
Technical specification
| Product model | JHX-200200G |
| Laser Type | Fiber Laser |
| Laser Power | Option: 20W/30W |
| Working Area(mm) | 200x200 |
| Marking Area(mm) | ≦5 |
| Cooling | Air-cooling |
| Marking speed | 0-120000mm/min |
| Marking Repeat Precision | ≤±0.01mm |
| Marking line width | ±0.01mm |
| Min character | 0.30mm |
| Auxiliaries | Wind pump, Wind pipe etc |
| Pulse Frequency | ≤100KHZ |
| Working voltage | 220v±10%, 50-60HZ |
APPLICATION VIDEO
COLLOCATION
Fiber laser marker and Engraving
