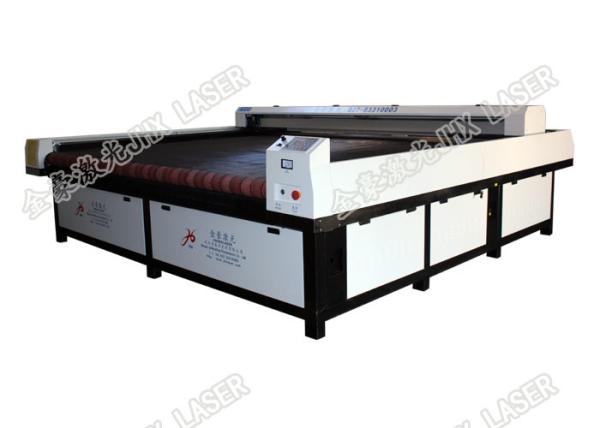

Custom made apparel cutting machine CAD laser cutting bed for fashion clothes JHX-180250S

Laser Cloth Cutting Machine DESCRIPTION

Garment Laser Cutting Solution
Technical Advantages
High speed and Stable Double Y-Axis Motion Control System
Double Y-Axis series is the latest laser cutting machine originated by JHX LASER. With flying route and double Y-axis structure (principle axis and auxiliary axis), the double Y-axis share the weight of gantry and realizes large format and high speed cutting. This technology offers brand new solution for high-speed cutting thick materials with large format.
Extra-long Material Continuous Cutting
While continuous feeding and cutting material, JHX LASER cutting system can do extra-long nesting and then full format cutting on a single pattern that exceeds the cutting area of the machine, saving material and saving cost.

Laser Cloth Cutting Machine Features

1. Steelwork structure, strong and stable, with high precision, satisfying the need of high-speed working;

2. Mixed optical route, high utilization ratio, that is very safe;

Simple design of fixed optical route ,it doesn` t need to maintain frequently;

3. The unique movement control system software , the working design procedure is perfect. To ensure that there isn`t over swing and delay when the laser head in adjusting;

4. Cooperate with the CAD, it can finish the immediate cutting. As for the 4 pictures is perfect.TO ensure that are beyond the cutting zone, it can process for another time, so that the automation of production is realized;

5. It has advantages in processing the special fabric.no hair-edge, high-effectiveness and high-speed;

6. Adopting specialized material transmission advice, the multilevel and seriate cutting can be realized.

Material & Application

Fabric and cloth,leather,paper,wood,organic glass,plastics,rubber,plastic,composite material and etc

1. The cutting of the seamless adhesive materials like skiing waterproof coat, diving suit and etc. And the cutting of things for outdoor use like tent, sleeping bags, etc;

2. Single cutting of the special clothes like wedding dress, defense supplies for labor insurance, suit, fashionable dress, suit-dress and etc;

3. Cutting of special materials like air bag, trap valve,canvas,parachute,sofa,auto interior and etc, it can positioning hollowing;

4. Home textile, case and bag, carpet process, sample, sample cloth process;

5. Engraving of glass, that is no hurts of the original materials, save the manual and with high accuracy of repeat positioning.

Technical specification

APPLICATION VIDEO

COLLOCATION

Manual Feeder Auto Feeder(Single layer feeding)

Auto Feeder(Two Layer Feeding) Red Light Pointer

X axis Synchronous Pressing Device

Custom made apparel cutting machine CAD laser cutting bed
